Building wires

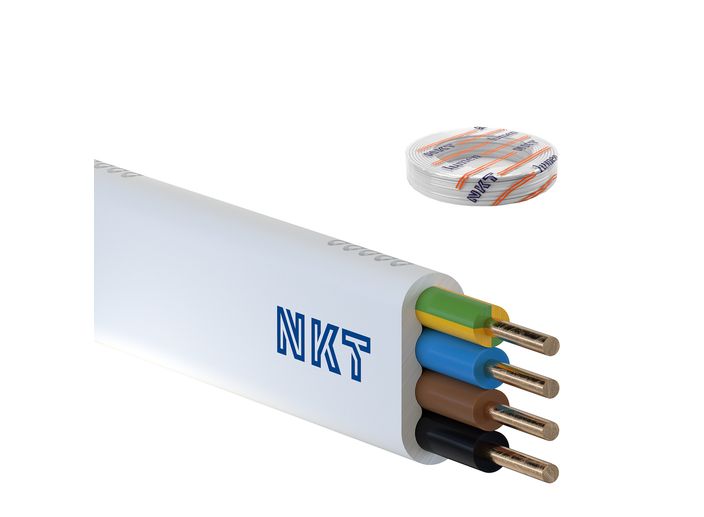

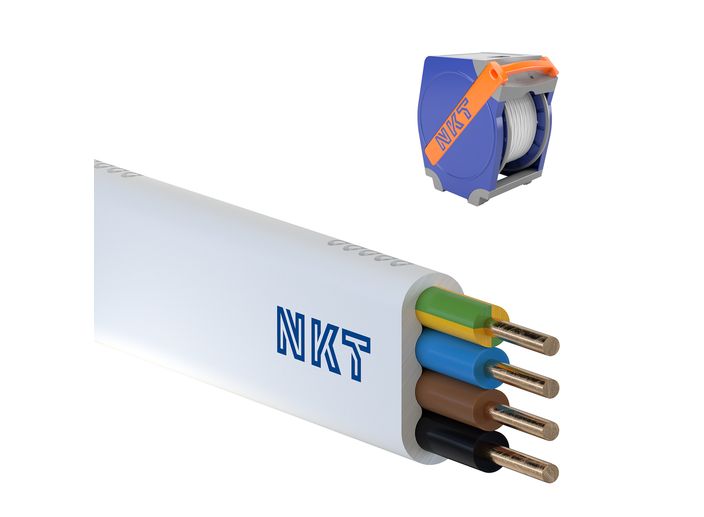

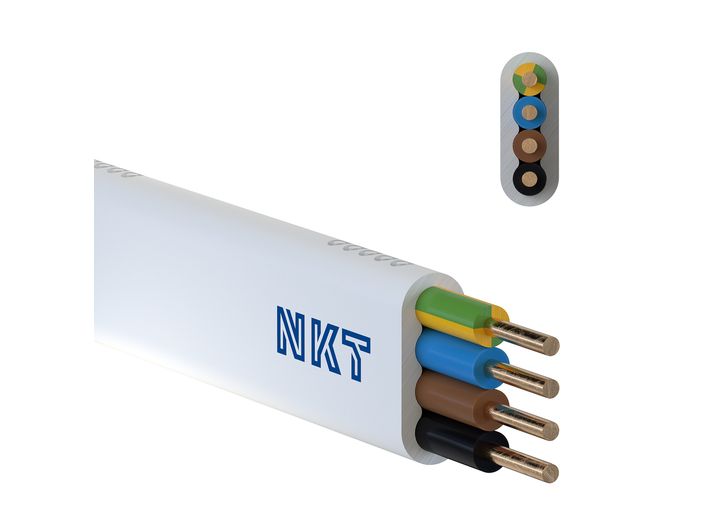

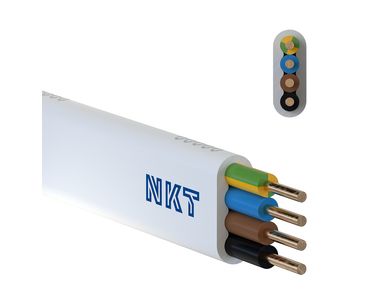

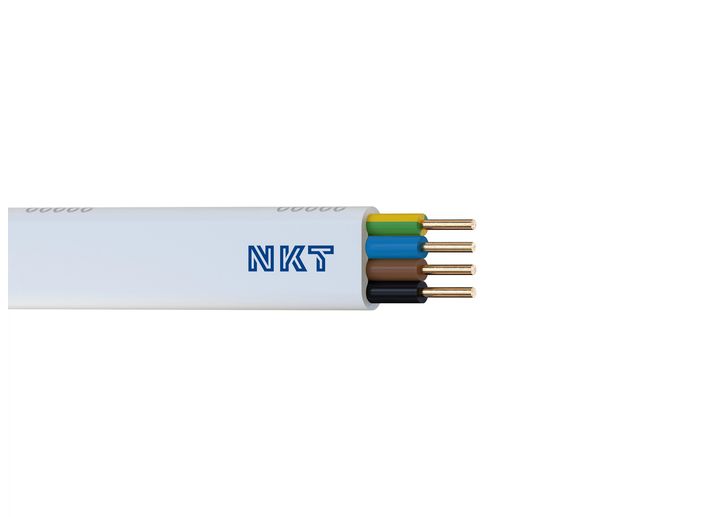

NKT instal lumen YDYp 450/750 V

NKT instal lumen YDYp 4x1.5 mm2 450/750 V containing a neutral conductor marked in blue is the best choice for fixed installations, offering exceptional reliability and fast installation. The vacuum extruded coating allows for easy handling of the cable and quick installation.
Key features:
·       Voltage: 450/750 V
·       Temperature range: -40°C to +70°C (max. conductor temperature: +70°C, in case of short circuit: +160°C)
·       Min. laying temperature: -5°C
·       Min. bending radius: 4d,
·       Compliance: PN-E-90068, RoHS, REACH
Application:
Ideal for fixed installations indoors under, in and on plaster. The lumen 4x1.5mm2 series cables allow the realization of extensive lighting installations, which guarantee the full safety of the installation's use and its compliance with current regulations.
Construction:
·       Conductor: Copper class 1
·       Insulation: PVC
·       Outer sheath: White PVC
Technical specifications:
·       Cross-sectional range: 4x1.5 mm2
·       Insulation thickness: 0.8 mm
·       Outer sheath thickness: 1.2 mm
·       Outer diameter: 5.2x13.6 mm
·       Cable weight: 133 kg/km
Modernize your lighting installations with NKT install lumen YDYp 450/750 V cable with safety and comfort. Available below: data sheet, DoP declaration, CE declaration, EPD environmental declaration, certificate.
NKT instal lumen YDYp 4x1.5 mm2 450/750 V containing a neutral conductor marked in blue is the best choice for fixed installations, offering exceptional reliability and fast installation. The vacuum extruded coating allows for easy handling of the cable and quick installation.
Key features:
·       Voltage: 450/750 V
·       Temperature range: -40°C to +70°C (max. conductor temperature: +70°C, in case of short circuit: +160°C)
·       Min. laying temperature: -5°C
·       Min. bending radius: 4d,
·       Compliance: PN-E-90068, RoHS, REACH
Application:
Ideal for fixed installations indoors under, in and on plaster. The lumen 4x1.5mm2 series cables allow the realization of extensive lighting installations, which guarantee the full safety of the installation's use and its compliance with current regulations.
Construction:
·       Conductor: Copper class 1
·       Insulation: PVC
·       Outer sheath: White PVC
Technical specifications:
·       Cross-sectional range: 4x1.5 mm2
·       Insulation thickness: 0.8 mm
·       Outer sheath thickness: 1.2 mm
·       Outer diameter: 5.2x13.6 mm
·       Cable weight: 133 kg/km
Modernize your lighting installations with NKT install lumen YDYp 450/750 V cable with safety and comfort. Available below: data sheet, DoP declaration, CE declaration, EPD environmental declaration, certificate.
